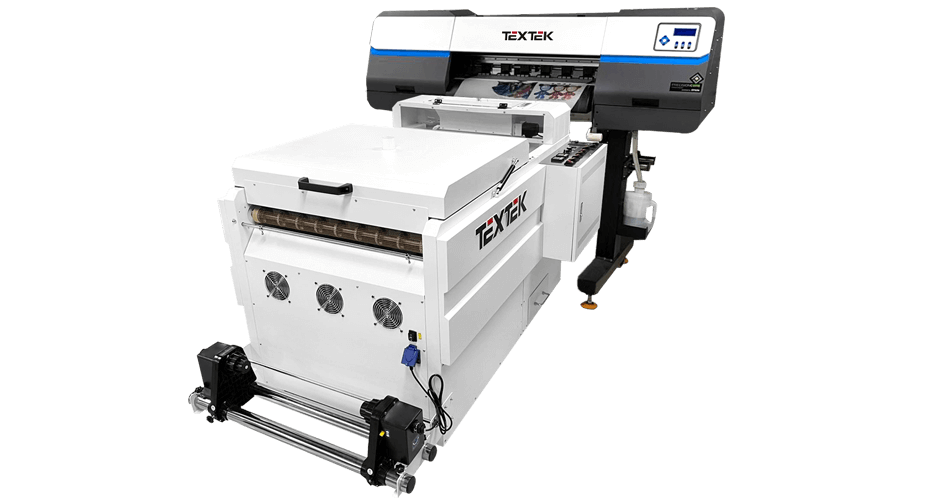

70cm DTF Printer

  • Printhead: 2*EPSON I3200-A1
  • Printing Speed: 12-15sqm/h
  • Print Width: 70cm(24 inch)
  • Ink: CMYK+W Pigment Ink
  • Ink Color: 4 Color Printing
  • RIP Software: Maintop, Photoprint

Specification

Printer Model FD70 DTF Printer,H650 Shaking Powder Machine
Printhead 2pcs Epson I3200-A1  3200 DPI
Printing Speed
Tested on linear print without feather
6pass 12-15㎡/h  8pass 9-11㎡/h
Printing Width 700mm(24 inch)
Ink CMYK+W  Pigment Ink
Print Media PET Film
Heating System Front and Back Independent Heater
Transmission Interface Gigabit LAN
RIP Software Maintop, Photoprint
Image Format BMP, JPG, TIFF, EPS, PDF…
Computer System Windows XP/Win7/Win8/Win10
Power Supply 220V, 50/60 HZ, 10A 4500W
Work Environment TEMP.:10℃-38℃   Humidity:40%-70%
Machine Size/Weight 1690*480*235mm 150KG,1570*1180*1130mm, 250KG

Feature of 70cm DTF Printer

1. Not limited by fabrics, lower power consumption and stronger performance.

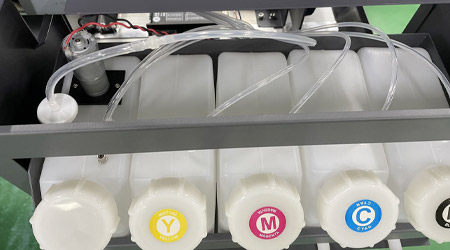

2. White ink circulation system prevents settling and clogging nozzle.

3. Support CMYK+W ink printing, bright color, better printing effect.

4. U.S.A rubber press roller, reduce static electricity and ensure even paper feeding, improve printing efficiency.

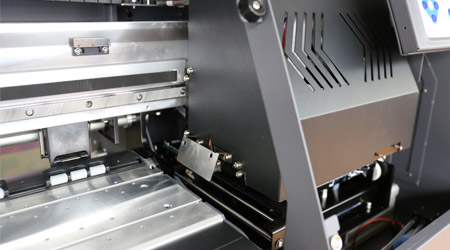

5. Adjustable liftable capping station, seals better with carriage and protects Epson I3200-A1 printhead.

6. Anti-collision device on carriage, effectively avoid hitting obstacles and damaging printhead.
